>Non-PVC I.V. Bag

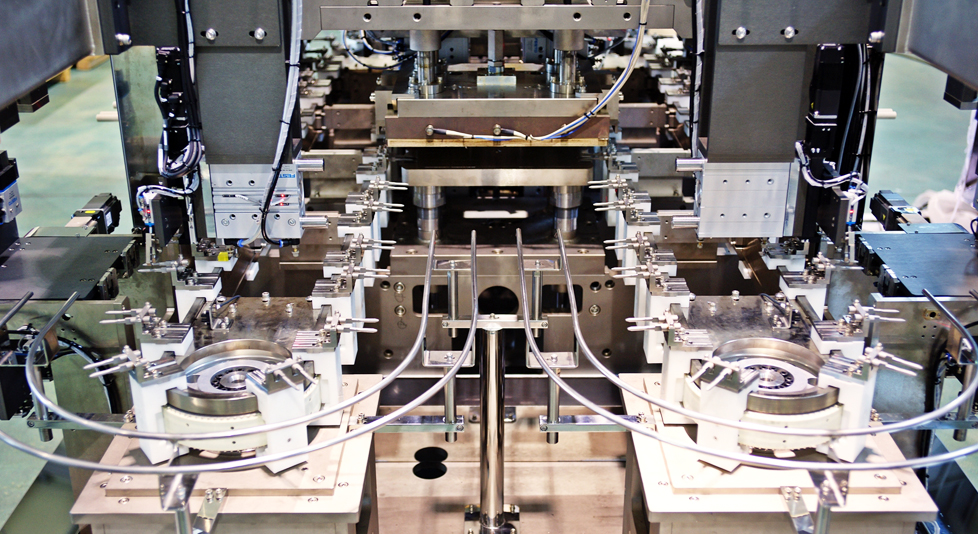

FFS Systems are intended for automatic, semiautomatic or manual & various production needs from 50mL~5000mL & T.P.N Multi-Chamber depending on local environmental.
Our equipment ensures trouble-free operation, with reduced maintenance costs and long-term reliability.

2-1

Form-Fill-Seal Specification

Item Units Model
MPP 1 up MPP 3 up MPP 4 up MPP 6 up MPP-Twin MPP TPN
Bag Volume ml 3,000 5,000 500 1,000 500 1,000 50 100 100 500 -
Dimension Length mm 5,800 6,000 7,000 8,000 9,500 8,000 8,500 9,000
Width mm 2,850 3,000 2,850 2,850 2,600 2,000 4,500 2,000
Height mm 1,960 1,960 1,960 1,920 2,600 2,170 2,100 2,100
Weight kg 5,000 6,000 6,800 8,000 13,000 15,000 10,000
Capacity Bag/hr 700~800 1,800~2,000 2,400~2,500 4,000~4,200 10,000~12,000 5,000~6,000 600
Electricity kw 30 35 35 40 40 40 60
Service Voltage - 380V×4 Wire×50/60Hz 220V×3 Wire×60Hz
Moving Control - Servo Motor Control
Control Pannel - Touch Screen
